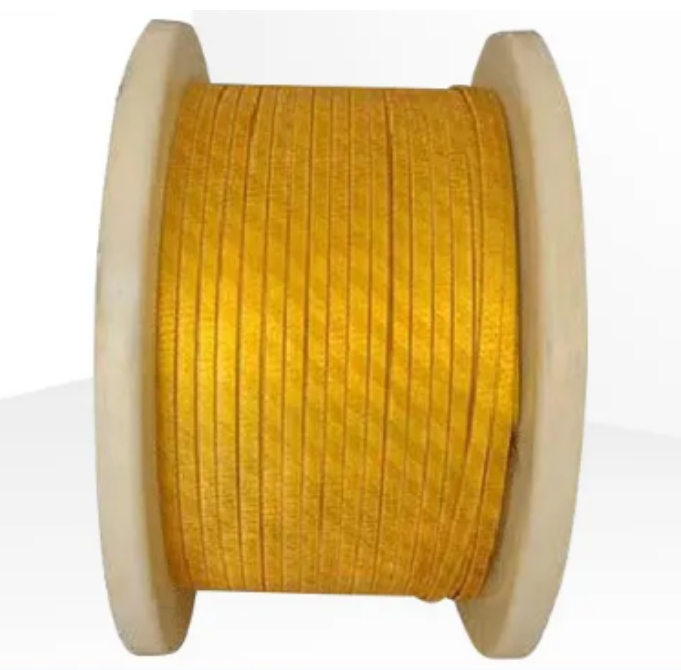

Fiber Glass Covered Aluminum Wire
Inner layer: Rectangular or round aluminum wire.
Glass fiber layer: Single or double-layer mesh-braided glass fiber wrapping.
Outer layer: A secondary high-temperature varnish coating that cures into a seamless insulation layer.1.
1.Enamels:
Diphenyl oxide of different temperature classes：130/155/180
2. Layers:
single and double
3.Insulation thickness(retangular):
(1)single
(2)double
(3)fiber and film covered
4.Standards:
IEC, NEMA, JIS, GB, such as IEC 60 317, NEMA MW 1000 or JIS C 3202
Conductor | Aluminium |
Single/Double Layer Glass Fiber wrapped Wire | |
Variety | Single/Double Layer Polyester Film Wrapped Single/Double Layer Glass Fiber Wire |
AluminiumFlatWire | a: 1.00mm - 8.00mm b: 3.00mm - 25.00mm |
Round Wire | 1.70mm - 6.00mm |
Properties | |
Single/double Layer Glass Fiber Wire | Glass fiber covered wire is a winding that covers one or two layers of glass fiber on the conductor, then coats the insulation material of the required temperature coefficient grade, and then bakes it into wire. It is widely used in transformers, electromagnets, welding machines or other similar electrical products. |
Single/Double Layer Polyester/ Polyimide Film Wrapped | Single/double layer polyester/polyimide film winding is covered with single/double layer polyester film or polyimide film at first, and then covered with 1 - 2 layers of polyester film or double layers of glass fiber. It is widely used in the windings of transformers, or other similar electrical products. |
Application:
Oil-immersed transformer windings;medium and large electrical motor coil
