product details

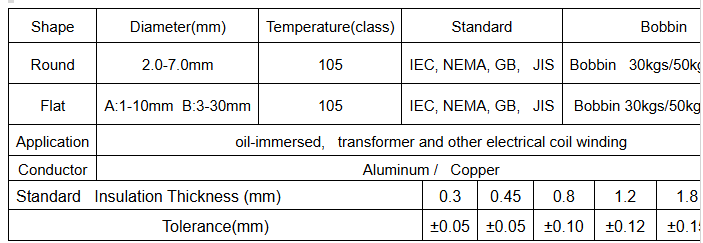

Thermal class : 90 ° 105°

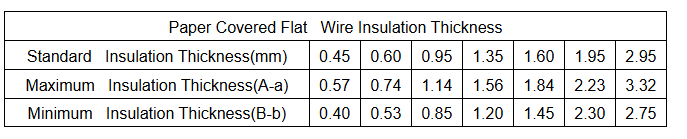

Product Range : Round shape 2.00-7.00mm , Flat/ Rectangular shape : A:1-10mm B:3-30mm:

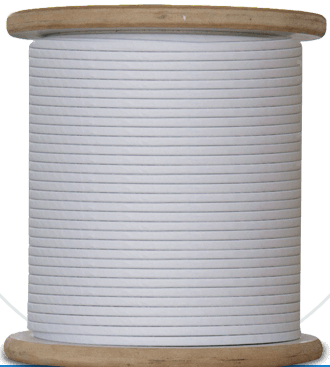

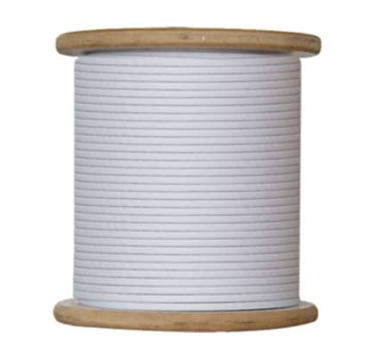

Paper Insulation Covered Wire is made by wrapping NOMEX insulation paper of T410 type produced by DuPont Company on conductor. It has a high degree of electrical, chemical, and mechanical integrity, and has good toughness, tear - resistance, abrasion - resistance, scratch - resistance, moisture resistance, water resistance, and can maintain good isolation at 220 degrees. It is mainly used for the winding of various transformers, reactors, rectifiers, and transformer windings.
Contact Us product details
Application of Paper Covered Copper(Aluminum) Wire:
· Our Paper Covered Aluminum/ Copper Wire uses two layers or several layers as the insulation layer.
· The wrapping direction of paper is same. And every layer paper twines conductors continually and compactly without wrinkles.
· Uses for oil-immersed transformers, reactors and other windings.
