Polyesterimide over-coated with polyamide-imide enameled aluminum round wire(EIW/AIW) CLASS200/220
Name | Polyesterimide/polyamideimide enameled round aluminum wire 200 | |
Type | 0IE/AIWAL,1EI/AIWAL 2EI/AIWAL Q(ZY/XY)L-3/200, Q(ZY/XY)L-2/200, Q(ZY/XY)L-1/200, | 0IE/AIWAL,1EI/AIWAL, 2EI/AIWAL Q(ZY/XY)L-3/220, Q(ZY/XY)L-2/220, Q(ZY/XY)L-1/2200, |
Thermal class | 200 | 220 |
Standard | IEC60317-25 | |
Specification | ф 0.15mm-ф 6.00mm, AWG4-AWG34 SWG8-SWG38 | |
composition | Aluminum, Polyesterimide/polyamideimide Resin
| |
Typical application include: Transformer/Generator/Refrigerating system/Heatresistant motor/UPS power source

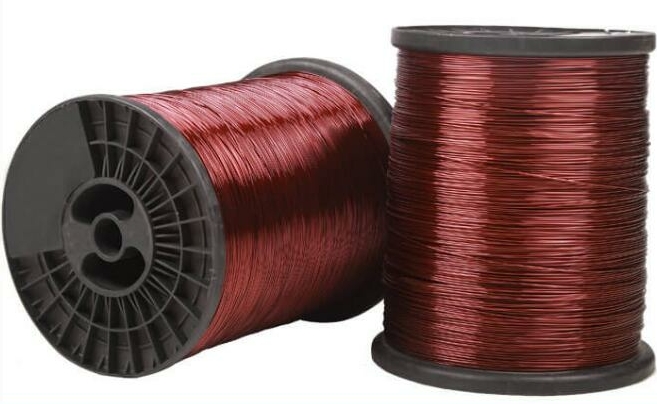

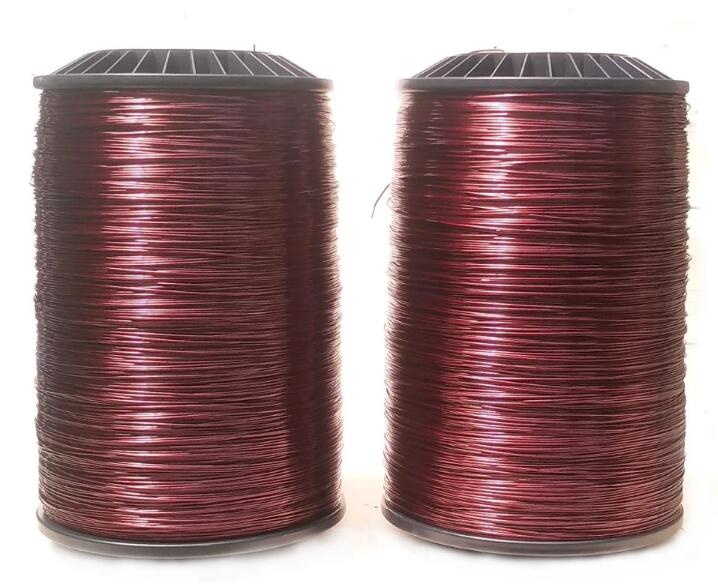

The Packing : Plastic Bobbin or wooden Bobbin,
PT4(1-2kgs) ,PT10(3-4kgs) , PT10( 5-6kgs), PT15(8-10kgs), PT-25(11-12kgs),PT-30(15-18kgs) ,PT-60(25-30kgs),PT-200(65-75kgs)
250*500mm wooden bobbin ( 55-65kgs)
250*400mm wooden bobbin (40-50kgs)
210*400mm wooden bobbin (28-30kgs)
other bobbin type could be according to customer requirement .
