product details

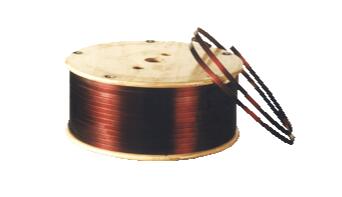

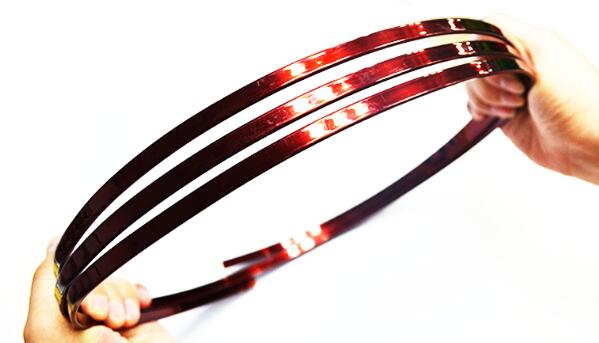

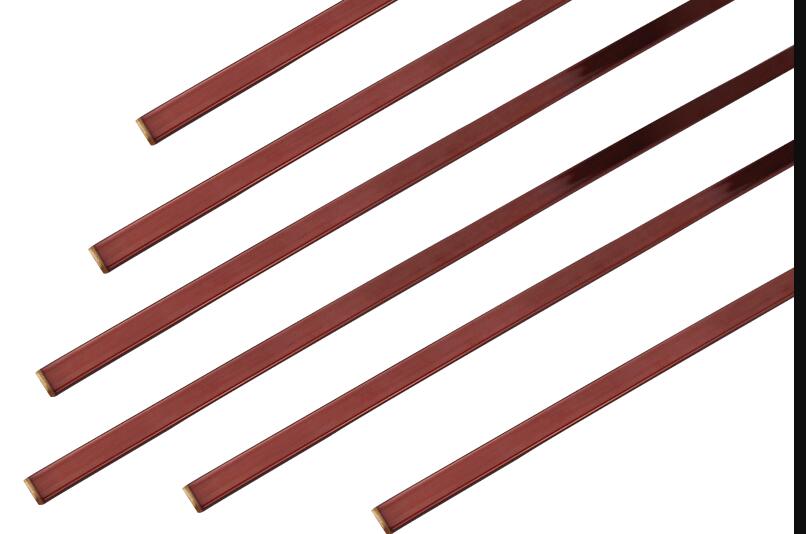

Type: Q(ZY/XY)B-180
Thermal Class(℃): 180
Standard: IEC60317， MW36， GB/T
Size Available: a: 0.50mm-10.00mm b: 2.00mm-40.00mm
Contact Us product details
Properties:
Higher thermal property Suitable for windings that are subjected to constantly high temperature and mechanical stress Good chemical resistance
Application :
Dry transformers/Motors/Generators/Machine windings/Welding machines/Other windings
The Packing : Plastic Bobbin or wooden Bobbin,
PT4(1-2kgs) ,PT10(3-4kgs) , PT10( 5-6kgs), PT15(8-10kgs), PT-25(11-12kgs),PT-30(15-18kgs) , PT-60(25-30kgs), PT-200(65-75kgs)
250*500mm wooden bobbin ( 55-65kgs)
250*400mm wooden bobbin (40-50kgs)
210*400mm wooden bobbin (28-30kgs)
other bobbin type could be according to customer requirement .
